Night vision Binocular goggles, Head Mounted Night vision goggles military

FOB Reference Price:Get Latest Price
$1.00 - $800.00 / Unit | 1 Unit/Units Edge GS 1X20 Night Vision Goggles (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Russian Federation
Brand Name:
Model Number:
175x123x72 mm
850 g
Night vision scopes
Effective Visual Distance:
Operating Voltage:
3v (2xAAA)
Product name:
Edge GS 1X20 Night Vision Goggles
Type of image intensifier tube:
Field of view:
Resolution (centre):
42 lines/mm
Objective lens diameter:
Min focus Range:
Max range of View:
Diopter adju.:
+4 to -4
Eye relief:
Operating Temperature:
Supply Ability
Supply Ability:
10000 Unit/Units per Month Edge GS 1X20 Night Vision Goggles
Packaging & Delivery
Packaging Details
Night vision Binocular goggles, Head Mounted Night vision goggles military
Packaged in waterproof bag and box
NVB Tracker
Telescopic doubler
Neck Strap
Cleaning Cloth
User Manual
Guang Zhou
Lead Time :
Shipped in 7 days after payment

Night Vision Goggles, Helmet Mounted Night Vision Goggles for hunting



Product Description



Fully Multi-Coated Lenses
Central Focusing
Extra-Wide Field of View
High Quality Picture
Compact & Lightweight
Deluxe Padded Soft Carrying Case
ECLIPSE™ Exclusive Lens Cup System
Head Mountable


Type of image intensifier tube: CF-Super/EP33-SF-U

Magnification:                           1X

Objective lens:                          20mm

Resolution in the centre FOV:   36 lp/mm,min

Angular field of view:                 36 degree

Max. dectection range:              90/98 m/yds

Eyepiece adjustment:                +4 to -4

Operating Voltage:                    3v(2xAAA)

Tripod mount:                            1/4inch

Av. operation time with 2AAA batteries(IR off/on):            50/20 h

Operating temperature:           -20 °C~+40 °C


Dimensions, mm/inch:

Length:                                    163 / 6.4

Width:                                      113 / 4.4

Height:                                      60 / 2.4

Weight of the unit, kg/oz:          0.65 / 22.9

Weight of the head mount, kg/oz:           0. 2 / 7


Max. detection range of an object measuring 1.7x0.5 m in natural night conditions (0.05 lux, quarter moon ).


The Goggles are ideal for professional and ameteur use, including:
1) Night observation in natural environment
2) Search adn rescue
3) Night orienteering
4) Repair and maintenance of equipment
5) Hunting
Make sure that the batteries have been installed according to the instructions found in the battery installation section of this manual.

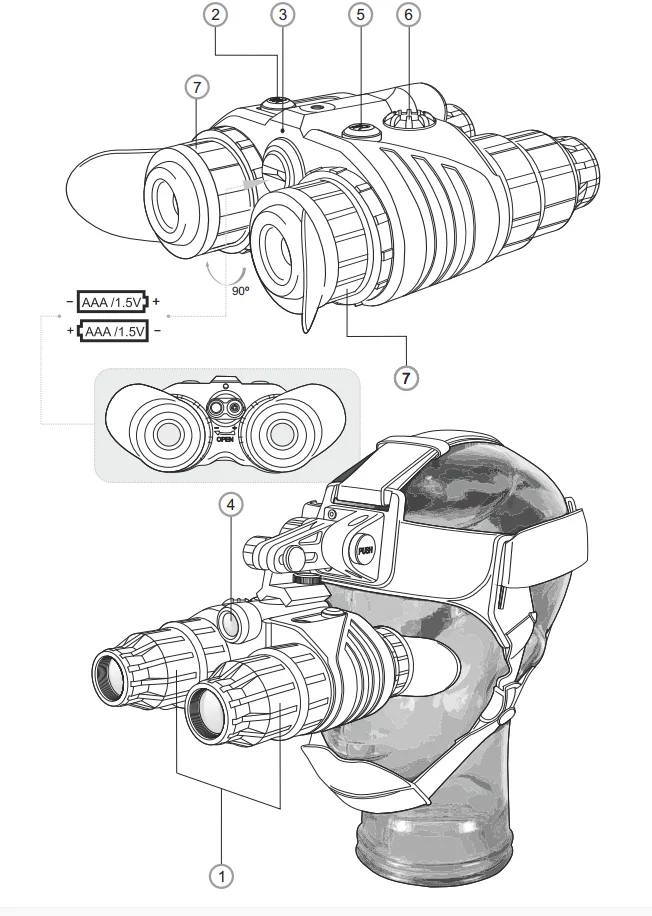

Enter a dark area before turning on the goggles. Remove the objective caps. Activate the device by pushing the “ON” (2) button. The green LED indicator (3) lights up. If the batteries are low, the colour of the indicator will turn red. You can test your goggles in a light area without removing the protective caps. This will not damage your unit. If the subject to be viewed is in a completely dark area, including lowlight shadow areas; activate the infrared illuminator (4) by pushing the “IR” button (5). To adjust the IR power, rotate the controller (6). Direct the turned on goggles at an object at a distance of about 10-100 meters. Rotating the eyepieces (7), focus on the tube's screen - rough surface or tiny dark dots are visible. Rotate the objective lenses (1) until the image quality is optimal. Re-focus the eyepieces, if necessary. After this adjustment you may not rotate the eyepieces irrespective of the distance and objective lenses.
